Monday, January 26, 2015

How To: CRUD operation in SharePoint apps on list (host web apps) using JavaScript Object Model (JSOM)

In my previous post, have shown how to deploy simple SharePoint app in hosted web apps.

Now i want to show how to Create, Read, Update and Delete operation on host web apps list.

I have created one list named it as "Associate" with 4 columns named as associate id(internal name Title), associate_name, associate_num, associate_address.

As we know, server side code is not allowed in SharePoint-hosted apps. So, we have to use client side object mode(JSOM/REST API)

1. Open visual studio 2013 --> Create new project --> Apps for SharePoint
2. Give a name for solution and click on OK.

3. Now go to pages folder and right click on it then add client web part call it as "CRUDOpps.aspx"

Now design the page as below,

        <input id="btnGetList" onclick="associateList()" type="button" value="Get List" />

        <div id="divList">&#160;</div>

        <div id="newitem" style="display: none">
                        <td>Associate Id </td>


                            <input name="associateId" id="txtTitle" type="text" /></td>
                        <td>Associate Name </td>


                            <input name="associateName" id="txtName" type="text" /></td>
                        <td>Associate Number </td>


                            <input name="associateNumber" id="txtNumber" type="text" /></td>
                        <td>Associate Address </td>


                            <input name="associateAddress" id="txtAddress" type="text" /></td>

                            <div id="AddAssociate" style="display: none">
                                <input onclick="runSubmit()" type="button" id="btnAddSubmit" value="Add" />
                            <div id="UpdateAssociate" style="display: none">
                                <input onclick="runUpdate()" type="button" id="btnUpdate" value="Update" />

                            <input id="btnCancel" onclick="runCancel()" type="button"
                                value="cancel" /></td>

4. Now open App.js from the Scripts folder and add the JavaScript code for performing CRUD operations on the CategoryList. There are some specific steps we need to implement for every operation:

We need to work with the App Web and Host Web URL. To do that the following helper method with querystring parameter will help us out:

function manageQueryStringParameter(paramToRetrieve) {
    var params =
    var strParams = "";
    for (var i = 0; i < params.length; i = i + 1) {
        var singleParam = params[i].split("=");
        if (singleParam[0] == paramToRetrieve) {
            return singleParam[1];

5. Read list items

In the App.js declare variables to store the Host web and App web:

var hostWebUrl;
var appWebUrl;

Get the Host Web and App Web Url in document.ready:

hostWebUrl = decodeURIComponent(manageQueryStringParameter('SPHostUrl'));
appWebUrl = decodeURIComponent(manageQueryStringParameter('SPAppWebUrl'));

In the above code: SPHostUrl represents the full URL of the host site and SPAppWebUrl represents the full URL of the app web.

context = new SP.ClientContext(appWebUrl);
clientContext = new SP.AppContextSite(context, hostWebUrl);

These two statements are used to get context of App web and host web.

In CRUDOpps.aspx page we have added on button to get list of associate details when user click on the button it will display available associate details along with update and delete button for each row.

Add the following method in App.js to list of associate in host web.

function associateList() {
    context = new SP.ClientContext(appWebUrl);
    clientContext = new SP.AppContextSite(context, hostWebUrl);
    list = clientContext.get_web().get_lists().getByTitle(listName);
    var query = new SP.CamlQuery();
    listItems = list.getItems(query);

Once the query is success, the below function will execute

function onSuccess() {
    listItemEnumerator = listItems.getEnumerator();
    output = "<table style=><tr><th>Associate Id</th><th>Associate Name</th><th>Associate Number</th><th>Associate Address</th></tr>";
    while (listItemEnumerator.moveNext()) {
        itemId = listItemEnumerator.get_current().get_id();
        output = output + "<tr><td>" + listItemEnumerator.get_current().get_item('Title') + "</td><td> " + listItemEnumerator.get_current().get_item('associate_name') + "</td><td>" + listItemEnumerator.get_current().get_item('associate_num') + "</td><td>" + listItemEnumerator.get_current().get_item('associate_address') + " </td><td><input id='btnDelete' onclick='deleteItem(" + listItemEnumerator.get_current().get_id() + ")' type='button' value='delete'/></td><td><input id='btnUpdate'onclick='updateItem(" + listItemEnumerator.get_current().get_id() + ")' type='button' value='Update'/></td></tr>";
    output = output + "</table><br/><input id='btnAdd' type='button' value='Add Associate' onclick='addnewItem()'/>";

Fail method will be common for all failure calls

function onFail() {
    alert('request failed');

After displaying all associates details, now you can update/ delete any associate details or you can add new associate details clicking on add associate button.

7. Create item in list

Add the following method in App.js to create a new associate details:

when you click on add associate button, will show add new associate form.

function addnewItem() {
    $("#txtTitle").attr("value", "");
    $("#txtName").attr("value", "");
    $("#txtNumber").attr("value", "");
    $("#txtAddress").attr("value", "");

8. Update item in list

Here am using one method for add and update associate details

function operation(string) {

    context = new SP.ClientContext(appWebUrl);
    clientContext = new SP.AppContextSite(context, hostWebUrl);
    list = clientContext.get_web().get_lists().getByTitle('associate');
    if (string == 'update') {
        listItem = list.getItemById(itemId);
        parameter = 'updated';
    else {
        var listCreateInfo = new SP.ListItemCreationInformation();
        listItem = list.addItem(listCreateInfo);
        parameter = 'added';

    if (($("#txtTitle").val() != "") && ($("#txtName").val() != "") && ($("#txtNumber").val() != "") && ($("#txtAddress").val() != "")) {
        listItem.set_item('Title', $("#txtTitle").val());
        listItem.set_item('associate_name', $("#txtName").val());
        listItem.set_item('associate_num', $("#txtNumber").val());
        listItem.set_item('associate_address', $("#txtAddress").val());
    else {
        alert('Enter all the fields');

On success it will updated associate details on page.

function onSuccessOfOperation() {

    if (parameter == 'added') {
        alert('Item added to list');
        parameter = "";
    if (parameter == 'updated') {
        alert('update complete');
    if (parameter == 'deleted') {
        alert('Item deleted');

9. Delete item in list

Add the following method in App.js to update associate details based on ID.

function updateItem(a) {
    itemId = a;
    parameter = 'update';
    context = new SP.ClientContext(appWebUrl);
    clientContext = new SP.AppContextSite(context, hostWebUrl);
    list = clientContext.get_web().get_lists().getByTitle(listName);
    listItem = list.getItemById(itemId);
function onUpdate() {
    $("#txtTitle").attr("value", listItem.get_item('Title'));
    $("#txtName").attr("value", listItem.get_item('associate_name'));
    $("#txtNumber").attr("value", listItem.get_item('associate_num'));
    $("#txtAddress").attr("value", listItem.get_item('associate_address'));

In App.js add the below code to Delete associate details.

function deleteItem(itemId) {
    parameter = 'deleted';
    context = new SP.ClientContext(appWebUrl);
    clientContext = new SP.AppContextSite(context, hostWebUrl);
    list = clientContext.get_web().get_lists().getByTitle('associate');
    var listItem = list.getItemById(itemId);

10. Since the App makes call to the SharePoint List, we need to set permission for the App to access list. To set these permissions, in the project double-click on AppManifest.xml and from the permission tab set the permissions as below:

11. Now i want to change client app title, description, width and height.

12. Now build the application deploy on developer site. Once you deploy on developer site now we will move the app to on working site.

13. Now open catalog site for the working site and upload CRUD Operations on file in Apps for SharePoint.

14. Now follow my previous post to display app on a page.

15. After adding the app on page it looks like as below, by default it will show only one button.

16. Once user click on get list button, it will show list of available associate details

17. When user click on update button then it will show edit form for the respective associate.

18. Once user edit the details click on 'update'.

19. To add new associate details, then click on add associate button then enter details and click on add.

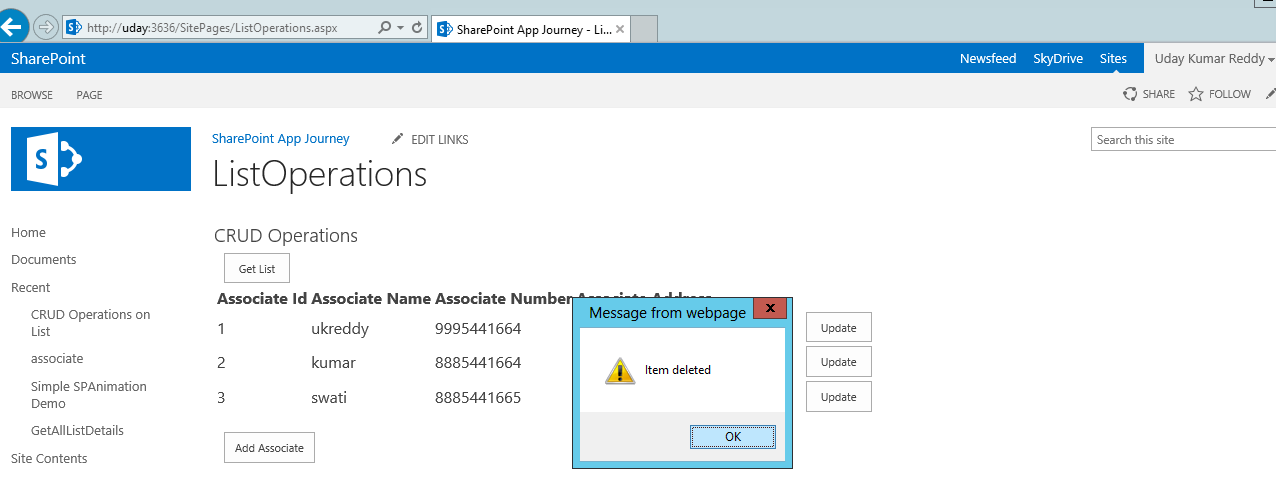

20. To delete any associate from list, click on delete of that associate.

After doing any operation the list automatically updates.

That is all about how to perform CRUD operations on list in SharePoint apps.

Please find the complete source code here.

Monday, January 12, 2015

Error Type: DataForm Web Part displays "Unable to display this Web Part"

There is one scenario,

1. Create a list or library in SharePoint 2010.
2. Open the list / library in SharePoint Designer.
3. Close and hide the XSLTListView Web part on the page.
4. Insert a DataForm web part on the page.

The page is working fine in SharePoint 2010 but once you migrate the site from SharePoint 2010 to SharePoint 2013 and If the list contains a large number of columns or custom XSL has been applied to the DataForm web part the following error message may be displayed:

"Unable to display this Web Part. To troubleshoot the problem, open this Web page in a Microsoft SharePoint Foundation-compatible HTML editor such as Microsoft SharePoint Designer. If the problem persists, contact your Web server administrator."

You can also see System.StackOverflowException errors in the SharePoint log.

In SharePoint 2013, Microsoft has reduced the timeout for XSLT transformation from 5 seconds to 1 second without giving the administrator the option of increasing it manually via Powershell.  The reduction is a securtity measure to reduce the risk of successfull DoS attacks. .

The timeout essentially causes any modified XSLTListViewWebPart and XSLTDataViewWebParts to error intermittently when viewed in the browser.

We can fix the above error using Powershell script.
Below script is used to make the change to the Timeout value.  Changing it to 5 seconds worked for us and the webparts are now showing fine.

PowerShell to set XsltTransformTimeOut

$farm = Get-SPFarm

$farm.XsltTransformTimeOut = 5


Saturday, January 10, 2015

How to hide actions menu from SharePoint ribbon to all user other than site owners group members( or group members)

In this blog you will see how to hide site actions button in the top ribbon if the logged in user not exists in a particular SharePoint group using ECMAScript.

<script type="text/javascript">
ExecuteOrDelayUntilScriptLoaded(IsUserExists, "sp.js");
var group;
var users;
var ctx;
var groupCollection;
var user;
var currentuser;
function IsUserExists() {
   ctx = SP.ClientContext.get_current();
   groupCollection = ctx.get_web().get_siteGroups();
   // var oGroup = collGroup.getByName(projGroup);
   group = groupCollection.getByName("UKREDDY SharePointApp Journey Owners");
   ctx.executeQueryAsync(Function.createDelegate(this, this.OnGetGroupSuccess), Function.createDelegate(this, OnFailure));
function OnGetGroupSuccess() {
    ctx.executeQueryAsync(Function.createDelegate(this, this.OnGetuserSuccess), Function.createDelegate(this, OnFailure));
function OnGetuserSuccess() {
    var userEnumerator = users.getEnumerator();
    while (userEnumerator.moveNext()) {
           var user = userEnumerator.get_current();
           if (user.get_id() == currentuser.get_id() || currentuser.get_title()=='Administrator' || currentuser.get_title()=='System Account' ) {
function OnFailure(sender, args) {

Thursday, January 1, 2015

How to use SharePoint apps in SharePoint 2013 team sites

In my previous post, we have seen how to create and deploy an app to developer site.

Now i want to use that app in any SharePoint site. This is really interesting because ultimately we have to use apps anywhere in our SharePoint site. In starting stage, I have struggled very hard to find solution for how to add an app to my site and how to show that app in my SharePoint pages and finally got it.

Below are the steps which i have followed.

1. Take out app which is in solution's bin folder and keep it anywhere or else you can keep it in same place.
 path is looks like <solution path>/bin/Debug/app.publish/<version number>/<appname>.app

2. I have create new web application and one root collection. Now i want to use the existing app in newly created site.

If you want to use any app in your web application then there should be on app catalog for the web application and app should be added to the app catalog then only the app will be available to all site collections/sites under the web application.

So, now we need to specify where we should upload/add our app.
All apps are to be upload to app catalog only.
For this we can create new app catalog or we can use existing app catalog to the newly create web application.

For now am going to create new app catalog for the newly created web application.

3. Go to Apps in Central administration --> Click on Manage App Catalog.

4. Choose correct web application from web application list and select "Create a new app catalog site" then click OK.

5. Then it will open create app catalog page, in this specify the below details

    Title - Title for catalog site
    Description - Description for catalog site
    Web Site Address - Specify URL name
    Specify primary site collection administrator name then
    Specify list of end users names

6. After successfully creation of app catalog site it will redirect to manage app catalog page.
    Here click view setting --> it will redirect to site setting then click site collection administrators.

   Now add user name to whom you want to add as site collection administrators.

7. Now go to app catalog site home page, there you can see the below options
    Apps for SharePoint
    Apps for Office
    App Requests

Click on Apps for SharePoint.

8. Click "New App" and then upload your app file (.app).

9. Once the app successfully uploaded, we need to add few details about app then click OK.

10. After successfully adding app to the list, it will looks as below screen.

11. Now you go to site contents --> click add an app.

12. It will open apps page and will show all OOB apps in SharePoint and on left hand side you can find the below two options under your apps.
     Apps you can add (default selected)
     From your organization

13. Click on "From your organization" then you can see list of apps available where have been uploaded in app catalog.

14. Select your app by click on app, once you selected any app it will pop up once window asking about trusting the app. Click on "Trust it" then it will create new app in your SharePoint site.

15. Now create a page or open existing page to add newly created app.Here i have created new page named as "GetListDetailsApp.aspx"

16. Open the page in edit mode and click on "App part" on ribbon. it will show all apps in the current SharePoint site. select your app and click OK.

17. Now save the page and it will looks as below.

18. As i told in the starting my app will show list of available list/libraries in the current site.
if you click on get details button, it will show all available list and libraries.
